CubeSat Structure
1U primary structure, PC-104 stack compatible.
- Format
- 1U, 100 x 100 x 113.5 mm
- Material
- Aluminum 7075 + 6061
- Stack
- PC-104 compatible
- Mass
- 115 g
Overview
The EOS Orbit 1U structure carries a CubeSat's subsystems through launch and orbit. Machined from anodized aluminum 7075 and 6061, it accepts a standard PC-104 stack and provides up to four kill switch positions and up to four separation spring positions.
The design family scales from 1U to 16U, and the frame accepts custom mounting options for mission-specific hardware.
Features
- 1U format, 100 x 100 x 113.5 mm, 115 g
- Anodized aluminum 7075 and 6061
- PC-104 CubeSat kit bus compatibility
- Up to 4 kill switch positions
- Up to 4 separation spring positions, nominally 2
- Custom mounting options
- 1U to 16U configurations available
Specifications
Physical
Size 100 x 100 x 113.5 mm
Mass 115 g
Material Aluminum 6061 and 7075, anodized
Mounting PC-104, 4x M3
Kill switches Up to 4 positions
Separation springs Up to 4 positions, nominally 2
Operating temperature -40 to +85 °C
Qualification
Thermal vacuum 8 cycles, -20 to +60 °C, < 10⁻⁵ Torr, 1 h dwell at extremes
Random vibration 14.1 gRMS, 20-2000 Hz

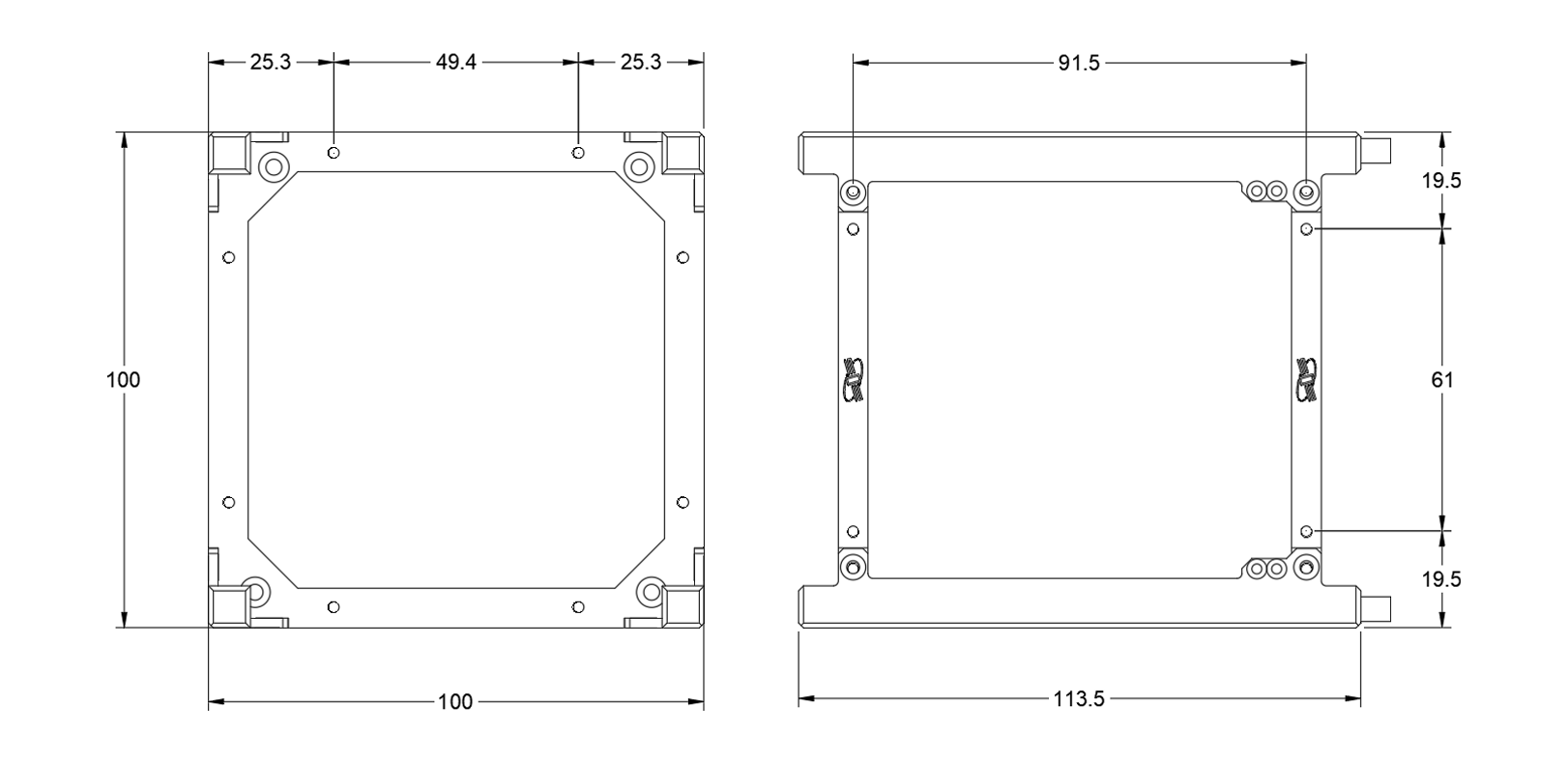

Mechanical
Heritage
Flown on LOGSATS-2. Launched January 15, 2025, on a SpaceX Falcon 9. 440 days of orbital operations.
Commission this system
Write to contact@eosorbit.com with your mission parameters. The engineering team responds with configuration options, lead time, and test documentation.
